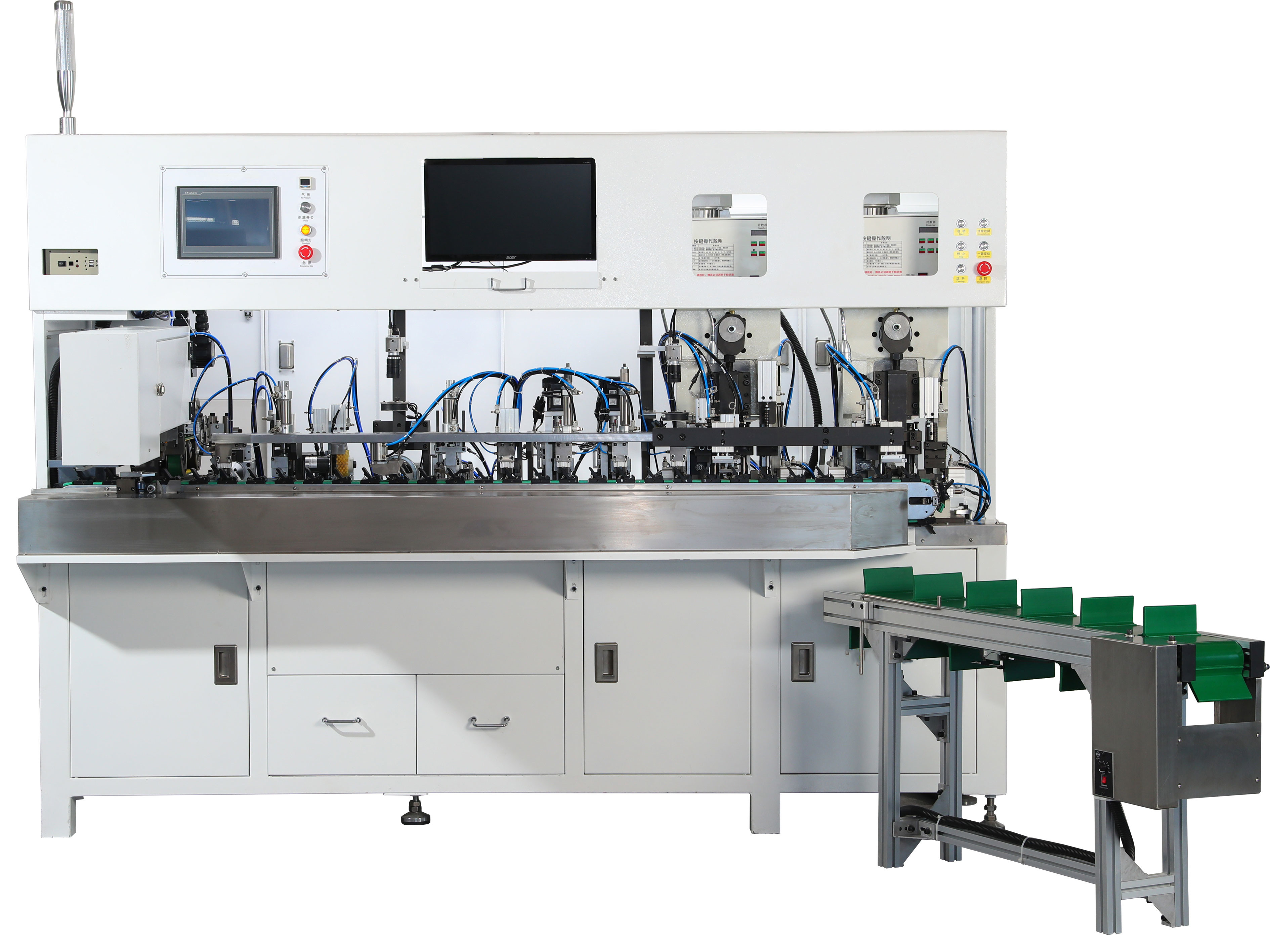

Universal CX-3000C 3 / 2 Pin 16Amp Plug Crimping Machine Two Types Of Insert

Name: Universal CX3000C 3 2 Pin 16Amp Plug Crimping Machine Two Types Of Insert
Brand: CHENXIN
Price: 1 USD

Buy cheap Universal CX-3000C 3 / 2 Pin 16Amp Plug Crimping Machine Two Types Of Insert product

Brand Name : CHENXIN

Model Number : CX-3000C

Place of Origin : CHINA

MOQ : 1/Set

Price : Fob Shenzhen

Payment Terms : T/T

Supply Ability : 100 sets per month

Delivery Time : 15-20 working days

Packaging Details : wooden case

Capacity : 1,300-1,500pcs/hr

Applicable wire : 0.5-1.0sqmm 3/2 cores round cable(above 1.5sqmm can be customized)

Air pressure : 0.5-0.8Mpa

Voltage&Frequency : AC 220V/380V 50Hz

Warranty : 1 year. 24hr online technical guidance

Weight : 1,900kg

Contact Now

CX-3000C 3 / 2 Pin Plug Crimping Machine-Two Types of Plug Insert Are Universal

Function:

Automatic feeding of wires, automatic cutting and B-side stripping, A-side stripping, talcum powder removal, CCD1 color separation, core wire separation, crimping 1, CCD2 detection, core wire cutting, stripping 2, core wire cutting, stripping 1, core wire shaping, crimping 2, take-up count.

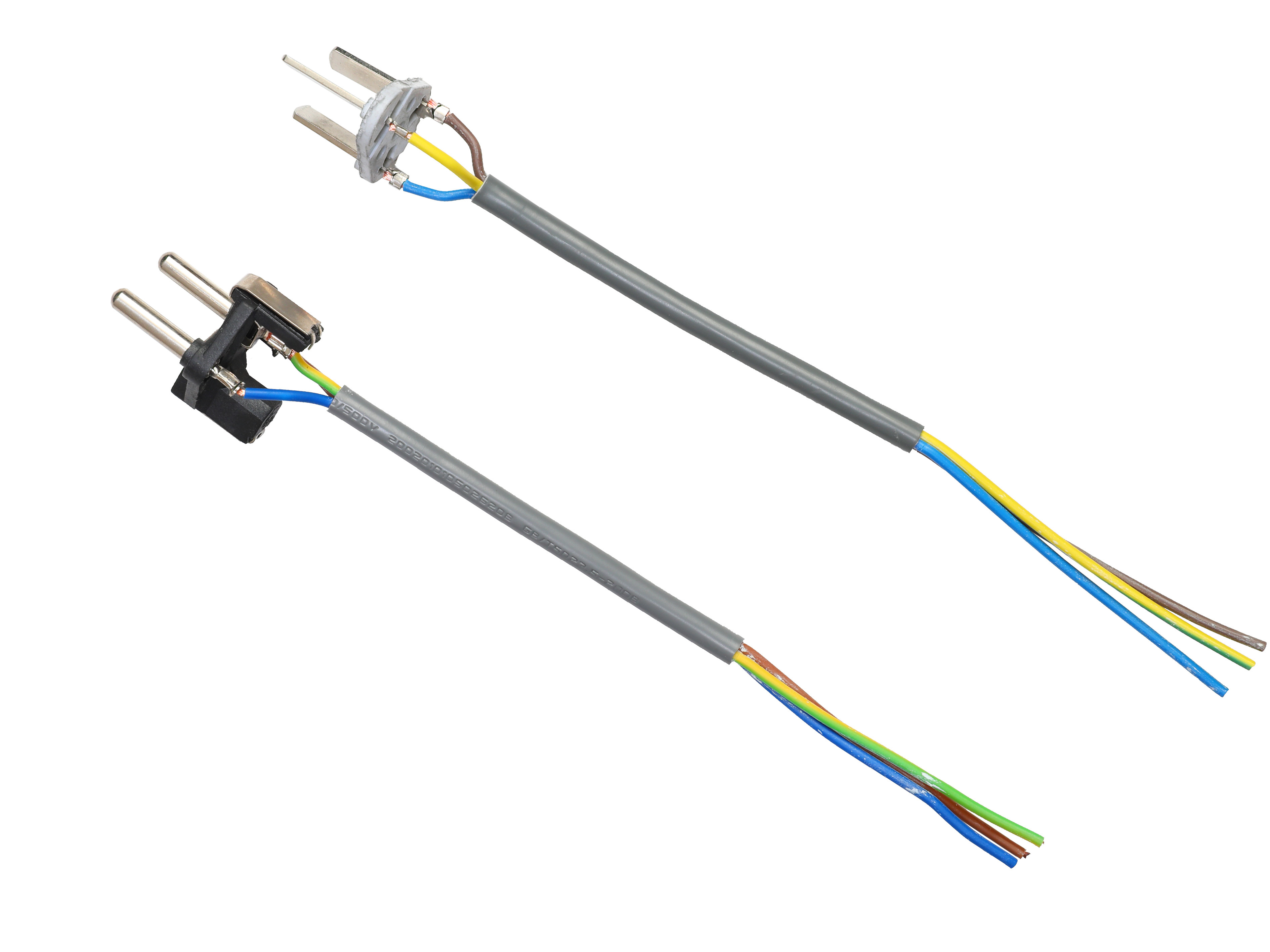

2. The finished product can be produced as shown in the picture on the right.

Type of plug insert: You can choose two types of plug insert at the same time. Chicness CCC three-plug, French plug, BS plug, Brazilian three pin plug, American three pin plug, Australian three pin plug, etc. National safety regulations three pin plug or two pin plug insert. The two types of plug insert are universal.

Technical Parameter

Voltage & Frequency	AC220V / 50Hz
Air pressure	0.6-0.7Mpa
Capacity	1,300-1,500pcs/hr(1 step 2.4/sec)
Applicable wire	0.5-1.0sqmm 3/2 cores round cable(above 1.5sqmm can be customized)
The number of people can be saved	2-3 worker
Dimension	L 2,700mm * W 7,000mm* H 2,000mm (include wire prefeeder 1250 floor space)
Weight	1,900kg
Applicable plug insert	2 types of plug insert are universal
