Multi Core Peeling Stripping Terminal Crimping Machine Short Wire

Name: Multi Core Peeling Stripping Terminal Crimping Machine Short Wire
Brand: CHENXIN
Price: 1 USD

Buy cheap Multi Core Peeling Stripping Terminal Crimping Machine Short Wire product

Brand Name : CHENXIN

Model Number : CX-6800G

Certification : ISO9001

Place of Origin : China(Mainland)

MOQ : 1/Set

Price : FOB Shenzhen, EX-work, C&F, CIF

Payment Terms : T/T

Supply Ability : 150 sets per month

Delivery Time : 10-15 working days

Packaging Details : wooden case

Applicable wire : 0-20 Core sheath wire, flat wire, electronic wire, parallel wire

Stripping length : 15-30mm

Stroke : 30mm

Punching force : 2T

Capacity : 1,200pcs/hr

applicable mold : OPT horizontal/straight mold

Power : 0.75kw

Voltage&frequency : AC220V 50/60Hz

Dimension : L850xW450xH680mm (Without protrusions)

Net Weight : 105kg

Contact Now

CX-6800G Multi Core Wire Peeling Stripping Terminal Crimping Machine (Short Wire Type)

Feature Description

1, Stripping and terminal crimping are completed at one time, which is convenient and fast. Frequency conversion control is adopted to realize soft start and soft stop. No mechanical loss.

2, The clamping die and stripping parts are independent, the crimping die is easy to replace, the stripping depth is adjustable, and the production adaptability is strong.

3, It can strip and crimp terminals independently, which can be operated automatically or manually, and each action time can be adjusted according to the specifications of wire and terminal.

4, The whole machine adopts PLC program control, man-machine interface, 7-inch touch screen, pneumatic and air valve, which is durable.

5, Proprietary stripped wire jacket recovery device for cleaning operation.

Technical Parameter:

Model	JH-6800G Multi core wire stripping terminal crimping machine (short wire type)
Power supply	220V- 50-60HZ
Power	0.75KW
Dimension	L850xW450xH680mm (Without protrusions)
Net weight	105KG
Applicable wire	0-20 Core sheath wire, flat wire, electronic wire, parallel wire
Stripping length	15mm-30mm
stroke	30mm
Punching force	2.0T
Capacity	about1200pcs/hr(according to the material of the wire)
Auxiliary function	With paper receiving and waste cutting device

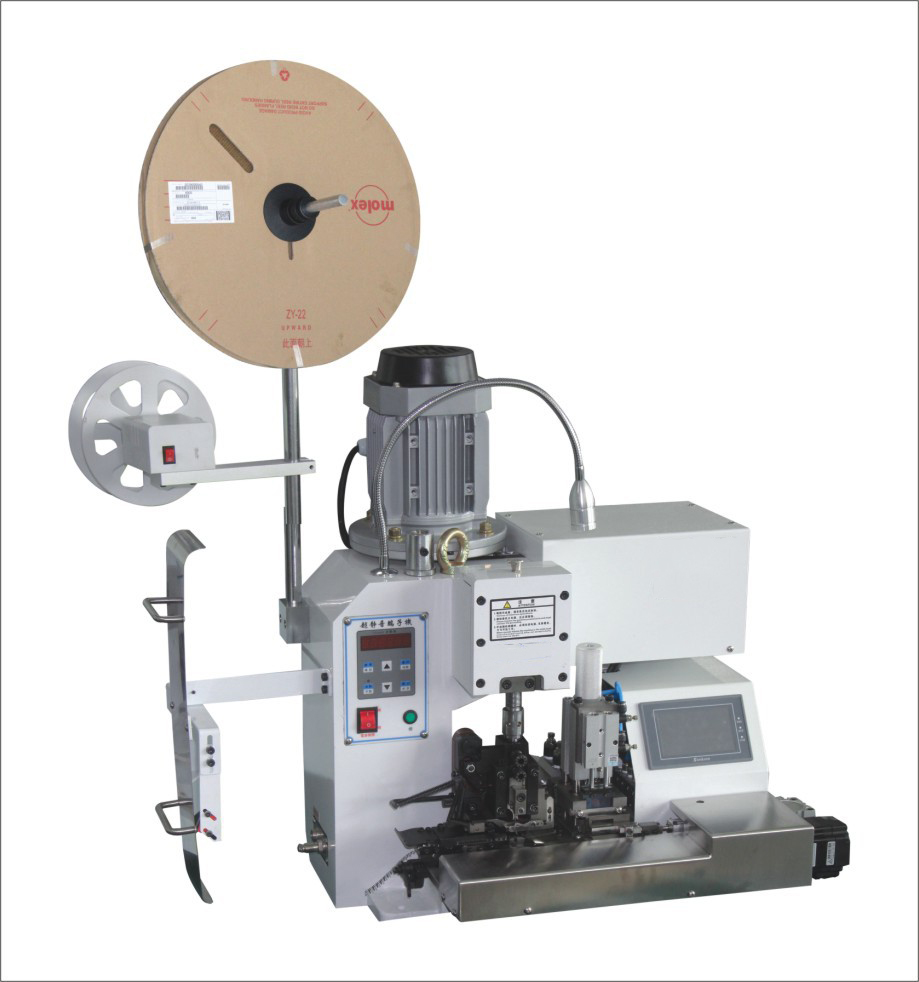

Machine front picture

Multi Core Peeling Stripping Terminal Crimping Machine Short Wire

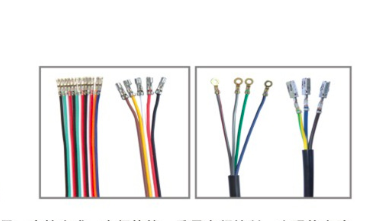

Finished Product:

Multi Core Peeling Stripping Terminal Crimping Machine Short Wire
