CX-60A Automatic Wire Stripping And Terminal Crimping Machine 1.5T 2T 3T

Brand Name : CHENXIN

Model Number : CX-60A

Certification : ISO

Place of Origin : CHINA

MOQ : 1 SET

Payment Terms : L/C, T/T

Delivery Time : 7-10 work days

Packaging Details : Wooden Package

Price : EXW, FOB, CIF, C&F

Supply Ability : 500 sets per month

Usage : stripping, crimping

Stripping length : 1-10mm

Air pressure : 0.3-0.4Mpa

Voltage & Frequency : 220V/110V/50HZ/60HZ

Stroke : 20mm

Machine Rate : 750W

Contact Now

CX-60A Automatic Wire Stripping And And Terminal Crimping Machine 1.5T 2T 3T



 PRODUCT DESCRIPTION



· Wire stripping and crimping all-in-one machine



· High stability, ultra-quiet working environment.



· Designed with automatic skinning department, inching and automatic return function.



· Stripping part adopts famous brand pneumatic components, can rapidly complete the stripping operation efficient and stable.





Model CX-60A-1 CX-60A-2 CX-60A-3
Applicable wire diameter AWG36-AWG20 AWG36-AWG16 AWG26-AWG16
Stripping length 1-10mm 1-10mm 1-10mm
Stroke 20mm 20mm 30mm
Crimping force 1.5T 2T 3T
Motor rate 400W 750W 1100W
Machine Rate 750W 1500W 1500W
Air pressure 0.3-0.4mpa 0.3-0.4mpa 0.3-0.4mpa
Power 220V/110V/50HZ/60HZ 220V/110V/50HZ/60HZ 220V/110V/50HZ/60HZ
N.W 80kg 80kg 120kg

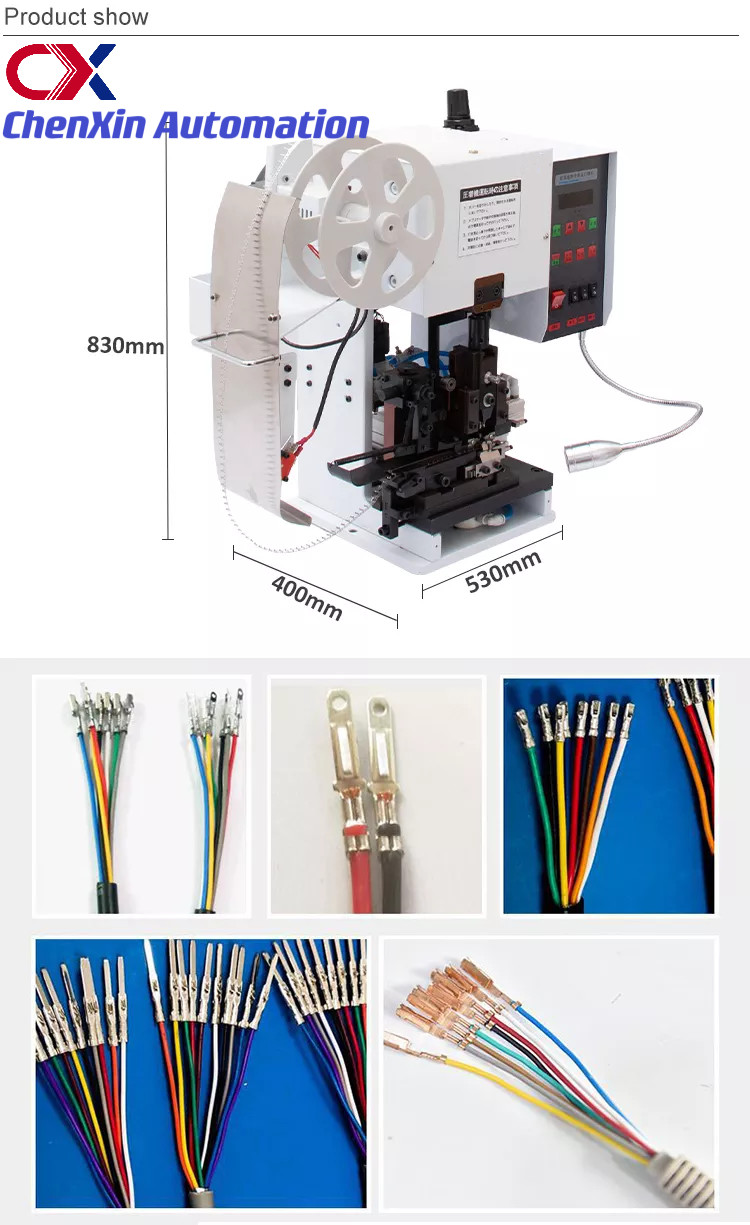

Dimension 530*400*830mm 530*400*830mm 500*450*1000mm



CX-60A Automatic Wire Stripping And Terminal Crimping Machine 1.5T 2T 3TCX-60A Automatic Wire Stripping And Terminal Crimping Machine 1.5T 2T 3T











Why Choose Us ?

Chenxin Automation Equipment(Guangzhou) Co., Ltd. is a company engaged in the manufacture of automation equipment for the processing of power cord AC plugs and wire harness ends processing for more than 10 years.

The company's main products are a fully automatic plug crimping machine, fully automatic wire tinning machine series, fully automatic wire winding machine series, semi-auto terminal crimping machine, automatic cutting machine, automatic coaxial wire stripping machine. Provide safer, labor-saving, efficient, and high-quality equipment for the power cord production, wire harness end processing industry.

We can provide a series of solutions in the wire and cable field to help promote the improvement of our customers' business. we not only provide equipment and solutions but also focus on offering high-quality services such as free layout design of power cord factory, overseas installation guidance, operation training, and so on.



What's Our Strenth ?



*Professional Expertise Team



*Strict Quality Control Team



*24-7 Customer Service Team



*Stable Supply Capacity
